Overview

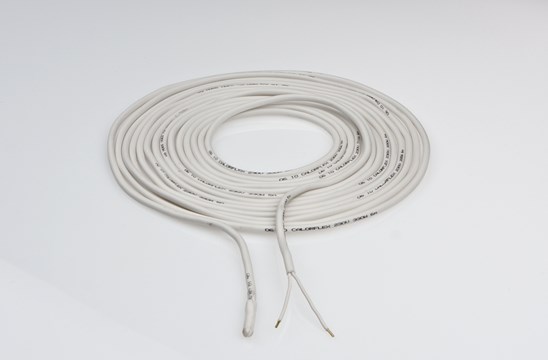

The series heating cable, Drainline, is usually installed in domestic and industrial refrigeration and air conditioning appliances. The vulcanized joint and the built-in cold part provide the cable with a waterproof structure, so as to allow its installation directly inside the pipelines. It is supplied already cut to measure and ready for use; and as a result its length cannot be shortened by the end user. Drainline is available in 1m to 6m lengths to suit your requirements.

Specifications

Supply Voltage 230V
Power 40W/m
External diameter 5.5mm ± 0.2mm (excluding the vulcanized joint)
Insulation Silicone
Operating temperatures From -60°C to +200°C
Minimum bending radius 15mm
Available certifications EC                                                                 Produced and tested according to the EN60335 standard.
Compliance with the 2014/35/EU directive

First Trace Drainline Trace Heating

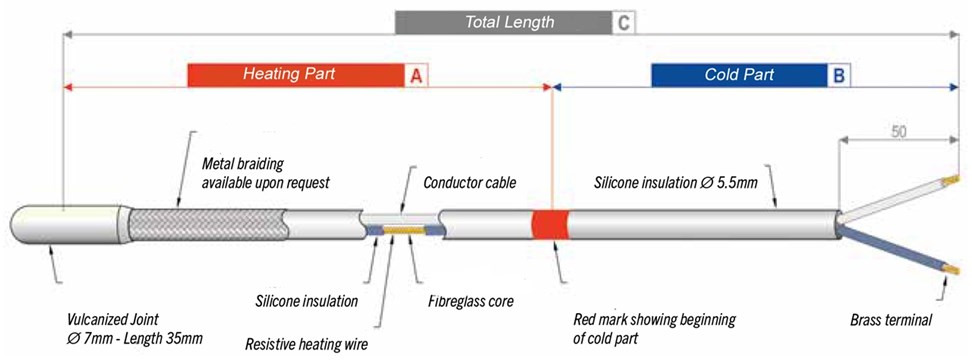

Dimensions

(as per diagram)

Supply Voltage 40W/m Heating Part mm Cold Part mm Total Length mm
240 40 1000 1000 2000
240 80 2000 1000 3000
240 120 3000 1000 4000
240 160 4000 1000 5000

First Trace Drainline Dimensions Image

PDF

Download the First Trace Drainline data sheet
