Process Temperature

Self Regulating Heating Cables

Our range of process temperature self regulating heating cables is designed to maintain pipework and vessels upto a maximum temperature of 120C.

The cables can be cut to any length to suit the project.

All of the below self regulating cables are Hazardous area approved and we have range of accessories to suit in both hazardous and non hazardous applications.

Watch: HT Trace Heating Cable range

Watch: FTH Trace Heating Cable range

FTH45

Medium temperature range

Loading45w/m, 230V

OuterjacketPolyolefin

Maximum exposure temperature

Continuous110°C

Intermittent135°C

FTH60

Medium temperature range

Loading60w/m, 230V

OuterjacketFluoropolymer

Maximum exposure temperature

Continuous110°C

Intermittent135°C

TraceHT45

High temperature range

Loading45w/m, 230V

OuterjacketFluoropolymer

Maximum exposure temperature

Continuous120°C

Intermittent200°C

TraceHT60

High temperature range

Loading60w/m, 230V

OuterjacketFluoropolymer

Maximum exposure temperature

Continuous120°C

Intermittent200°C

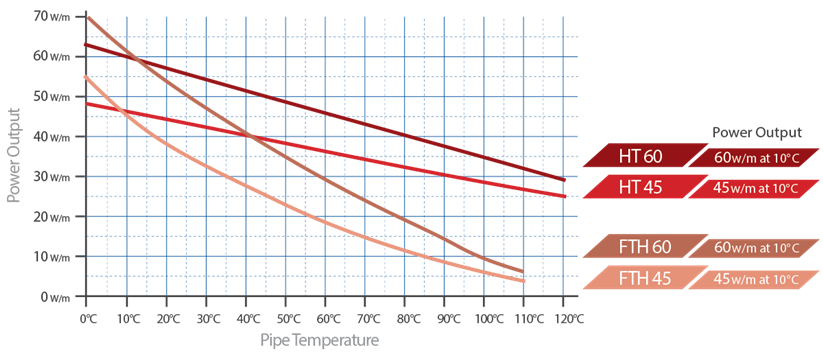

FTH & TraceHT Power Curve

Nominal power output at 230 Vac on insulated steel pipes

FTH & TraceHT Power Curve

PDF

Download the FHT data sheet Adobe PDF

PDF

Download the HT data sheet Adobe PDF

Constant Wattage Zone Parallel

Our range of process temperature constant wattage heating cables falls into two categories, our silicone cables complete with braid and our FEP cables complete with braid and FEP outer jacket for installation in corrosive environments.

All cables are cut to order and available in any length.

Zoneheat20B

Cable typeSilicone

Loading20w/m, 230V

Maximum exposure temperature

Continuous120°C

Intermittent225°C

Zoneheat30B

Cable typeSilicone

Loading30w/m, 230v

Maximum exposure temperature

Continuous105°C

Intermittent225°C

Zoneplus30

Cable typeFEP

Loading30w/m, 230V

Maximum exposure temperature

Continuous130°C

Intermittent260°C

Zoneplus45

Cable typeFEP

Loading45w/m, 230V

Maximum exposure temperature

Continuous90°C

Intermittent260°C

PDF

Download the Zoneplus data sheet
